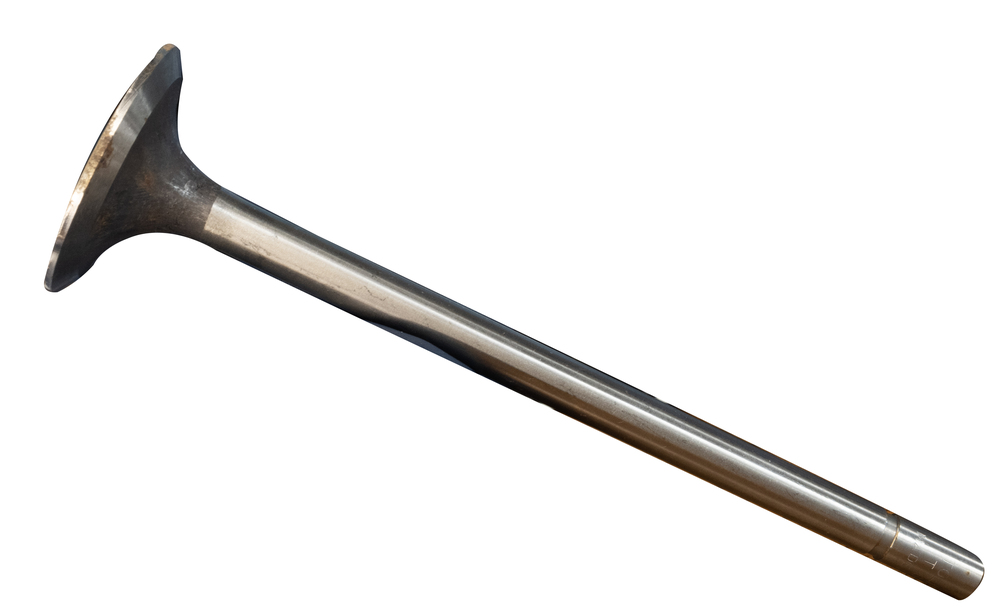

This is an Exhaust Valve for 1935-1940 Chevrolet 206 & 216CID engines. Replaces GM# 838717, 839412 Uses "U" shaped key. These valves fit only 30 degree valve seats. Manufacturer's Part #: 839412 Head Diameter (inches): 1.46875 Length (margin to tip): 4.6875 Stem Diameter (inches): 0.3402 Seat Angle: 30
For 1935 1936 1937 1938 1939 1940 Chevrolet Cars and Trucks
This is an EXHAUST Valve for 1941-1947 Chevrolet passenger cars & trucks with 6 Cylinder engines. Dimensions: One Groove - Head Dia. 1.46875", Overall Length (margin to tip) 4.6875", Stem Dia. .3402", Seat Angle 30 degrees. Replaces GM# 839412
For 1941 1942 1944 1945 1946 1947 Chevrolet Cars and Trucks
Intake & Exhaust Valve for all Chevrolet cars & trucks from Late 1927-1928. In 1927, there was a early series valve used - See AF-404. Compare to your original before ordering. Manufacturer's Part#: 346894 Head Diameter (inches): 1.65625 (42mm) Length (margin to tip): 4.5 Stem Diameter (inches): 0.31 Seat Angle: 45
This is an Exhaust Valve for all Chevrolet engines from 1941 thru 1949. It has a 30 degree valve angle and replaces GM# 3835318. Dimensions: Head Diameter (inches): 1.46875 Length (margin to tip): 4.796875 Stem Diameter (inches): 0.34 Seat Angle: 30
For 1941 1942 1944 1945 1946 1947 1948 1949 Chevrolet Cars and Trucks
This is an EXHAUST Valve for 1933-1934 Chevrolet cars & trucks. Replaces GM# 836963 Specific Applications: 1933 All Passenger & Truck; 1934 Standard Model Passenger Valve Specifications: Head Diameter (inches): 1.34375 Length (margin to tip): 4.765625 Stem Diameter (inches): 0.309 Seat Angle: 45
This is an Exhaust Valve for all Chevrolet cars & trucks. The valve has a single groove on the valve stem for the keeper. Replaces GM# 837317, 609380. For 45 degree valve seats. Specific Applications: 1934 Chevrolet Master passenger cars & trucks; 1935 All Chevrolet early car & truck engines Specifications: Head Diameter (inches): 1.46875 Length (margin to tip): 4.625 Stem Diameter (inches): 0.339 Seat Angle: 45
Intake & Exhaust Valve for all Chevrolet cars & trucks from 1915-Early 1927 are the same. In 1927, there was a late series valve used (See AF-405) Manufacturer's Part#: 345421 Head Diameter (inches): 1.50" Length (margin to tip): 4.525" Overall Length 4.74" Stem Diameter (inches): 0.310" Seat Angle: 45
For 1915 1916 1917 1918 1919 1920 1921 1922 1923 1924 1925 1926 1927 Chevrolet Cars and Trucks
This is an Exhaust Valve for 1932 Chevrolet cars & trucks. Replaces GM# 836803 Dimensions: Head Diameter (inches): 1.34375 Length (margin to tip): 4.593 Stem Diameter (inches): 0.31 Seat Angle: 45
This is a Pair of Valve Stem Keepers "U-Shaped" for 1934-1972 Chevrolet six & eight cylinder engines. These key clips are sold in a pair for one valve. Used on valves with annular grooves. Replaces GM# 838029
This is an INTAKE Valve for 1953-1962 Chevrolet passenger cars & trucks with 235 & 261 CID engines. Dimensions: Two Grooves - Head Dia. 1.875", Overall Length (margin to tip) 6.281", Stem Dia. .341". Replaces GM# 3815082 Specific Applications" 1953-1962 - 235 CID Engines; 1954-1962 - 261 CID Engines;
For 1953 1954 1955 1956 1957 1958 1959 1960 1961 1962 Chevrolet Cars and Trucks
Intake valve for all Chevrolet cars & trucks Fits: 1933 All; 1934 Standard Model Passenger Manufacturer's Part#: 836962 Head Diameter (inches): 1.453 Length (margin to tip): 4.87 Stem Diameter (inches): 0.3105 Seat Angle: 45
This is an Intake Valve for all 1935-1940 Chevrolet cars & trucks. Replaces GM# 838437 Uses "U" shaped key. These valves fit only 30 degree valve seats. Manufacturer's Part#: 838437 Head Diameter (inches): 1.640625 Length (margin to tip): 6.015625 Stem Diameter (inches): 0.341 Seat Angle: 30
For 1935 1936 1937 1938 1939 1940 Chevrolet Cars and Trucks
This is an INTAKE Valve for 1950-1952 Chevrolet passenger cars & trucks with 235CID engines. Dimensions: Two Grooves - Head Dia. 1.9375", Overall Length (margin to tip) 6.3125", Stem Dia. .341", Seat Angle 30 degrees. Replaces GM# 3835519
This is an Intake Valve for all Chevrolet cars & trucks. The valve has a single groove on the valve stem for the keeper. Replaces GM# 609379. For 45 degree valve seats. Specific Applications: 1934 Chevrolet Master passenger cars & trucks; 1935 All Chevrolet early car & truck engines Manufacturer's Part#: 837316 Head Diameter (inches): 1.640625 Length (margin to tip): 5.828125 Stem Diameter (inches): 0.341 Seat Angle: 45
This is an Intake Valve - 2-Groove with Flat Head - for all Chevrolet engines from 1941 thru 1949. It also fits 1950-1953 All with 216CID engine. It replaces GM# 3688065. Dimensions: Head Diameter (inches): 1.640625 Length (margin to tip): 6.21875 Stem Diameter (inches): 0.3415 Seat Angle: 30
For 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 Chevrolet Cars and Trucks
This is an Intake Valve for 1932 Chevrolet cars & trucks. Replaces GM# 836804 Valve Specifications: Head Diameter (inches): 1.453125" Length (margin to tip): 4.59375 Stem Diameter (inches): 0.309 Seat Angle: 45
This is a replacement Valve Push Rod for 1953-1962 Chevrolet 6-cylinder engines. Fits 235 & 261 engines. Overall length is 11-1/4". Used on hydraulic & solid lifter engines. Replaces GM# 3836260 Specific Applications: 1953-1955 Passenger - 6 Cylinder with Powerglide Trans; 1956-1962 Car & Truck with 6-Cylinder - 235 & 261 CID
For 1953 1954 1955 1956 1957 1958 1959 1960 1961 1962 Chevrolet Cars and Trucks
This is a reproduction valve push rod for 1937-1939 Chevrolet cars & trucks. Overall length 12-7/8". 12 required per engine. Used on all 216 CID engines. Replaces GM# 838409
This is a used pushrod for 1931 & 1932 Chevrolet cars & trucks. It is a functional replacement for all 1929-1932 Chevy engines. Limited quantities available, subject to stock on hand. Overall length 12". Replaces GM# 836393
This is a replacement EXHAUST Valve Guide for all 1941-1962 Chevrolet cars & trucks with 6-cylinder engines - 216, 235 & 261 CID. Replaces GM# 3688761, 605231. Dimensions: Overall Length: 2.4375"; Hole Diameter .3435" Fit Diameter: .5655" IMPORTANT !!! To obtain proper valve stem clearance, valve guides must be finished with a hand reamer after installation in cylinder head.
For 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 1954 1955 1956 1957 1958 1959 1960 1961 1962 Chevrolet Cars and Trucks
This is a replacement INTAKE Valve Guide for all 1934 Chevrolet Master Models and All 1935-1962 6-Cylinder Chevrolet cars & trucks. Replaces GM# 3688758, 3688760, 3708168 Dimensions: Overall Length: 3.34375"; Hole Diameter .3435" Fit Diameter: .5653" IMPORTANT !!! To obtain proper valve stem clearance, valve guides must be finished with a hand reamer after installation in cylinder head.
This is a replacement Exhaust Valve Guide for 1934 Chevrolet Master Models and All 1935-1940 Chevrolet cars & trucks. Replaces GM# 602978, 3688759 Overall Length: 2-1/4" IMPORTANT !!! To obtain proper valve stem clearance, valve guides must be finished with a hand reamer after installation in cylinder head.
For 1934 1935 1936 1937 1938 1939 1940 Chevrolet Cars and Trucks
This valve guide fits all 1929-1933 Chevrolet cars & trucks; also 1934 Standard passenger models. Used on both intake and exhaust valves. GM# 348965, 3689200 Hole Diameter: 0.3130" Fit Diameter: 0.5640" Overall Length: 2.6875" IMPORTANT !!! To obtain proper valve stem clearance, valve guides must be finished with a hand reamer after installation in cylinder head.
For 1929 1930 1931 1932 1933 1934 Chevrolet Cars and Trucks
This is a recrowning service for 1929-1962 Chevrolet mechanical valve lifters (tappets). This is a rebuilding service only. Send in your original lifters and allow 3-4 weeks.
For 1929 1930 1931 1932 1933 1934 1935 1936 1937 1938 1939 Chevrolet Cars and Trucks
This is a Solid Valve Lifter or Tappet for all 1956-1963 Chevrolet 235 & 261 CID engines for trucks with 6-cylinder engines. 12 required per engine, sold each. 2-piece - 2-3/16" long. Replaces GM# 5231880 Specific Applications: 1956-1959 Ser, 3 Trucks; 1960-1962 Ser. 10-30 Trucks; 1960-1961 Fleetmaster (exc. Powerglide); 1963 (1st Ser) 4WD Truck
For 1956 1957 1958 1959 1960 1961 1962 Chevrolet Cars and Trucks
This is a solid valve lifter or tappet for all 1940-1953 Chevrolet 216 CID engines for passenger car or trucks. 12 required per engine, sold each. Replaces GM# 839263
For 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 Chevrolet Cars and Trucks
This is a Solid Valve Lifter or Tappet for all 1941-1955 Chevrolet 235 CID engines for vehicle with 6-cylinder engines (except Powerglide). 12 required per engine, sold each. Replaces GM# 3660438
For 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 1954 1955 Chevrolet Cars and Trucks
These valve lifters (tappets) fit all Chevrolet car & truck engines from 1929-1939. Dimensions: OD = .990" OL 2.310", SINGLE HOLE AT BOTTOM. Replaces GM# 838774
For 1929 1930 1931 1932 1933 1934 1935 1936 1937 1938 1939 Chevrolet Cars and Trucks
This is a rocker arm valve oiler pad for 1926-1928 Chevrolet 4-cylinder engines. Mounts on top of rocker arms. Saturate the pad with engine oil initially, then add oil each time the vehicle is driven. This pad will help keep the rocker arm assembly lubricated properly. Made in the USA!
This is a 24 piece set of valve spring caps and flat retainer keys for all 1929-1933 Chevrolet cars & trucks. Also fits all 1934 Standard passenger models. Dimensions: 1.337" OD x .335" Deep. Replaces GM#'s 836117 & 836120.
This is a new valve spring for 1938-1953 Chevrolet & GMC cars & trucks with 6-cylinder engines (Except Powerglide). Sold Each, 12 pieces required. Dimensions: Uninstalled free height 2.125" OL x 1.21875" OD, 7-1/2 Coils, Compress to 1.828", Pressure Max 59, Pressure Min 52. Replaces GM# 839304, 3835626 Specific Applications: 1938-1952 All Cars & Trucks (except Powerglide)216 & 235 Engines; 1939-1962 GMC with 228, 236, 248, 256, 270, 302 Engines; 1953 Sedan Delivery, All Chevy Trucks
For 1938 1939 1940 1941 1942 1944 1945 1946 1947 1948 1949 1950 1951 1952 1953 Chevrolet Cars and Trucks
This is a new Valve Spring for 1954-1963 Chevrolet cars & trucks with 6-cylinder engines. Fits both Intake & Exhaust. Sold Each, 12 pieces required. Dimensions: Uninstalled free height 2.210" OL x 1.336" OD, 7 Coils, Compress to 1.528", Pressure Max 168, Pressure Min 158. Replaces GM# 3704142, 3836640. DOES NOT FIT 1959-1963 235CID engines - See FS-976. Specific Applications: 1954-1955 Passenger with Powerglide (6-cylinder); 1954-1955 (1st Series) Truck with 261 CID; 1956-1958 All with 235 CID; 1962-1963 All with 261 CID
For 1954 1955 1956 1957 1958 1959 1960 1961 1962 1963 Chevrolet Cars and Trucks
This is a set of New Valve Springs for 1959-1963 Chevrolet cars & trucks with 235 CID 6-cylinder engines. Sold in a set of 12 pieces. Used for hydraulic & mechanical lifters. Dimensions: Uninstalled free height 2.235" OL x 1.350" OD, 7-1/2 Coils. Replaces GM# 3758492. Specific Applications: 1959-1963 6-Cylinder 235CID Engines
This is a new set of valve springs for all 1929-1933 Chevrolet cars & trucks. Set of 12 pieces. Dimensions: 1.285" OD x .955" ID x 2.055" Overall Height. Replaces GM# 364912
For 1929 1930 1931 1932 1933 Chevrolet Cars and Trucks
We have found that several aftermarket companies are selling valve springs for this application that are too stiff and can cause pushrods to bend. Our springs are correct for this application. Uninstalled free height: 2.225" OL, 0.975" ID, Wire diameter 0.162" This is a NOS/NORS set of valve springs for all 1934-1937 Chevrolet cars & trucks (exc. 1934 Standard DC). Set of 12 pieces. Replaces GM# 837365. LIMITED SUPPLY - availability is subject to stock on hand.
