Item ID:
510825
Make:
Chevrolet
Weight:
12.5800lbs.

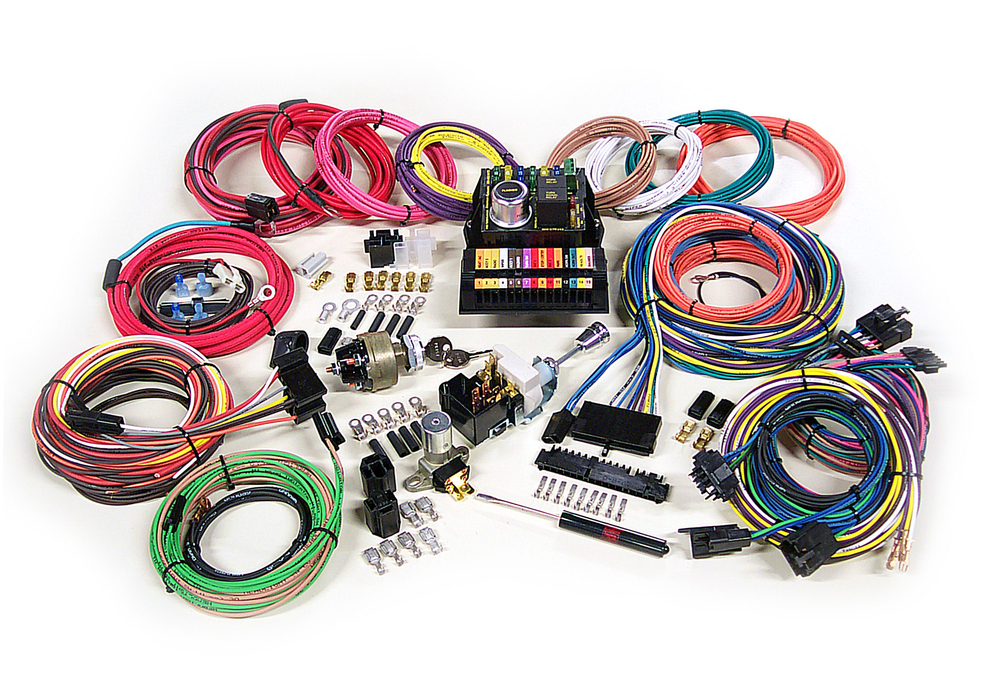

American Autowire manufactures this complete street rod wiring harness with top quality engineering & components. Made in the USA! Features include:
*LED Flasher built in for LED light support
*Backup Light wiring
*High amp alternator & main power connections
*Improved ignition switch with square GM style key
* Modular design with compact front loading.
"Over-Engineered" for Street Rods, Customs & Kit Cars with 15 Power Circuits.
* 175 Amp "Mega-Fuse" located at starter or alternator to protect panel.
* Alternator 8 gauge power feed wire.
* Panel dimensions: 4-1/2" x 4-1/2" x 3" high.
Heat resistant nylon 6/6.
Modular "American Blox" allows expansion.
Single-side wire access.
Self-locking screw down connections.
Mounted on Composite (G10) base plate.
* Panel Connections: 1)Heat/AC, 2) Accessory 3 3) Radio, 4) Wiper, 5) Accessory 1, 6) Hazard, 7) Turn Signal Switch, 8) Battery 3, 9) Stop/Courtesy 10) Battery 2, 11)Park, 12) Horn Switch, 13) Horn Out, 14) Headlights, 15) Gauges.
* Switches supplied: Headlight - 3 Position w/internal circuit breaker.
Ignition - dash ignition included and GM column connections supplied.
Dimmer switch - floor mounted.
* Wiring Harness Kits: Ignition Switch & Starter Kit; Alternator Conversion Kit; Headlight Switch Kit; Steering Column/Turn Signal Kit; Accessory Connection Kit; Gauge Connection Kit; All needed terminals & connectors for basic system.
* Instructions: Full color schematic with component symbols and step-by-step instructions for trouble-free installation.
In addition, each component harness kit has its own detailed instructions.
* Components: Relays - 2 micro-relays for horn & turn signals; 8 fuses; 1 circuit breaker; 15 self-locking screw down connections for battery, ignition and accessories.
This is a "Rock Solid" wiring kit, designed to give you a trouble-free system with a level of comfort you can trust.
* Made in America!
This part fits most 1920 1921 1922 1923 1924 1925 1926 1927 1928 1929 1930 1931 1932 1933 1934 1935 1936 1937 1938 1939 1940 1941 1942 1946 1947 1948 1949 1950 1951 1952 1953 1954 Chevrolet Cars and Trucks.; exceptions may apply. Please read the complete description to see if this part fits your specific vehicle and application.
