Item ID:
FS-909
Make:
Chevrolet

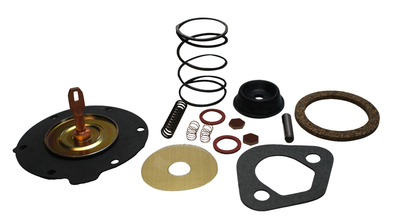

This fuel pump repair kit is for all 1935-1936 Chevrolet cars & trucks with original glass bowl AC fuel pumps. Kit includes: alcohol resistant diaphragm with shaft, diaphragm main spring & seal, mounting gasket, fuel bowl screen & gasket, lever arm pivot shaft, valves, valve housing gaskets, valve hair springs & arm tension spring. For AC 421, GM# 1521812, 1523421 fuel pumps.
Note: this kit for use on glass bowl fuel pumps only. Diaphragm ONLY will work on 1934 metal bowl pumps.
Also, the diaphragm can be rotated if bolt holes do not line up. Using a large crescent wrench, tighten on the flat part of the shaft. Pull diaphragm over the metal and grab tightly with your hand (as shown in photo), twist in the direction needed. The metal and rubber will pivot together on the shaft.
This part fits most 1934 1935 1936 Chevrolet Cars and Trucks.; exceptions may apply. Please read the complete description to see if this part fits your specific vehicle and application.
