Item ID:
FS-910
Make:
Chevrolet

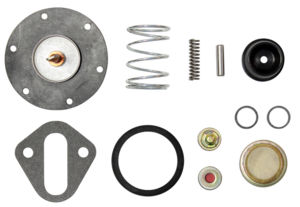

This fuel pump repair kit is for all 1937-1957 Chevrolet cars & trucks with SINGLE DIAPHRAGM glass bowl AC fuel pumps. Kit includes: alcohol resistant diaphragm with shaft, diaphragm main spring & seal, mounting gasket, fuel filter screen & glass bowl gasket, lever arm pivot shaft, valves, valve housing gaskets & arm tension spring. For AC 9798, AC 9832 & GM# 5592627 fuel pumps. Made in the USA! Kit replaces GM# 1538484, 5592945, 5592988 & AC R21, RA 228, RA 231
NOTE: The diaphragm can be rotated if bolt holes do not line up. Using a large crescent wrench, tighten on the flat part of the shaft. Pull diaphragm over the metal and grab tightly with your hand (as shown in photo), twist in the direction needed. The metal and rubber will pivot together on the shaft.
This part fits most 1937 1938 1939 1940 1941 1942 1946 1947 1948 1949 1950 1951 1952 1953 1954 1955 1956 1957 Chevrolet Cars and Trucks.; exceptions may apply. Please read the complete description to see if this part fits your specific vehicle and application.
